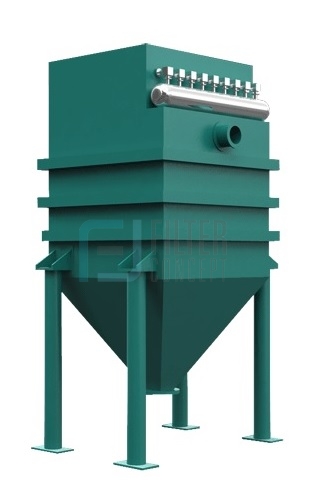

Pulse Jet Dust Collection Systems

Filter Concept is manufacturer of Pulse Jet Dust Collection system that caters to various industries’ requirement for air quality improvement and enhancing the quality of air released by collecting dust and other impurities from air or gas by removing particulate matter from the air and environment. We are a manufacturer of highly customized units with customized ducting solutions along with our dust collectors for your specific dust collection and application requirements.

Operation

The dirty or contaminated air enters the dust collector through the inlet and passes through a number of filter cartridges/bags (before the contaminated Air passes through the Filter Bag/Cartridge; baffle plate works as a protecting layer to control/retain heavy particles, which protects filter bags/cartridges to get in touch with heavy particles and damage caused by it) which retains the dust particles on the exterior surface while allowing clean air to pass through the outlet. As the collector operates, the collected dust begins to form dust cake, which eventually diminishes the porosity of the filter cartridges. As the pressure drop increases the ventilation volume of the collector decreases.

To maintain a moderate pressure drop, the cleaning cycle is employed to provide continuous cleaning of the filter Bags/cartridges. The cleaning system consists of a Sequential time controller, which actuates Solenoid Valve and the Compressed Air Header. These Compressed Air Header momentary burst or pulse of high pressure compressed air through the blow pipe into the filter tube. This Pulse of air creates reverse flow of air, which expands the filter cartridges to remove the collector dust.

The cleaning procedure occurs on a row‐by‐row basis therefore only a fraction of total filter air is interrupted for cleaning allowing continuous ventilation.

The dust cake when pulsed from the filter cartridges falls directly into the bucket at the bottom where it is removed.

FILTER CONCEPT’s Air intake filters are designed to meet required levels of filtered air for Turbines, Engines, Centrifugal Fans, Blowers, & Compressors. They are constructed using Filter Housing, Air Filter Element and Weather Hood.

Air Intake Filter housings are constructed with Heavy Gauge Mild Steel sheet channels, Plates and sheets. Filter housings are supplied along with flanged outlet connection having drilling of flanged as per ANSI B-16. 5. Internal and external surface of Filter Housing are preliminarily coated with red oxide followed with final coat of synthetic enamel RAL 7035.

  • Easy to operate and Handle.
  • Easy to install & remove.
  • Low consumption of compressed air (for cleaning).
  • High Filtering efficiency even for the finest dusts.
  • Filter media selection as per application.
  • Accessories as per client’s request.
PharmaceuticalsCement
Powder & Coating Metals & Minerals
ChemicalsSteel & Power
