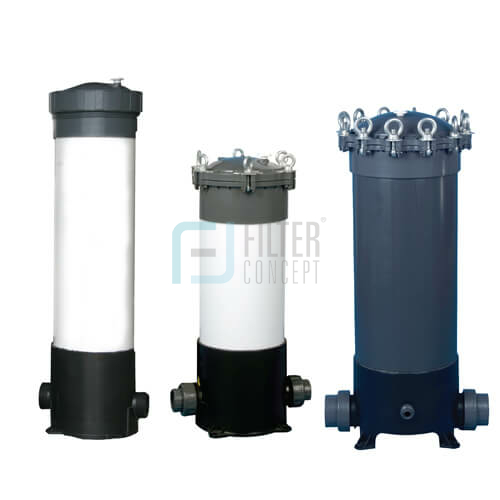

PVC Cartridge Filter Housing

Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 9 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

Operation

Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.

Material of Construction

  • Filter Housing-PVC
  • Bolt & Nut-SUS 316L

Inlet/Outlet

  • FCPL-PCU-5 & FCPL-PCB-5 Series-1.5”BSP
  • FCPL-PCB-9-3” BSP

Closure

  • FCPL-PCU-5-Union
  • FCPL-PCB-5 & FCPL-PCB-9-Bolt & Nut

Sealing

  • Silicon O Ring

Pressure

  • FCPL-PCU-5-Max. 60psi, Continuous 45psi
  • FCPL-PCB-5 & PCB9-max 100psi, Continuous 75psi

FCPL-PCU-5 Series – 5 rounds with union closure
FCPL-PCB-5 Series – 5 rounds with bolt & nut closure
FCPL-PCB-9 Series – 9 rounds with bolt & nut closure

PharmaceuticalsPetroleum Derivatives
Water TreatmentCoolants
Paints & InksFood & beverages
Bore Well waterDairy
Dyes & IntermediatesRO Pre filtration
Processing Chemicals& Many More
Sr. No.Model No.End ConnectionSuitable ForFitment
01FCPL-PCU-105-40
FCPL-PCU-205-40
FCPL-PCU-305-40FCPL-PCU-405-40
1.5″ BSP (F)05 Nos. of Ø 2.5” × 10” Long Filter Cartridge
05 Nos. of Ø 2.5” × 20” Long Filter Cartridge
05 Nos. of Ø 2.5” × 30” Long Filter Cartridge
05 Nos. of Ø 2.5” × 40” Long Filter Cartridge
Union
02FCPL-PCB-105-40
FCPL-PCB-205-40
FCPL-PCB-305-40FCPL-PCB-405-40
1.5″ BSP (F)05 Nos. of Ø 2.5” × 10” Long Filter Cartridge
05 Nos. of Ø 2.5” × 20” Long Filter Cartridge
05 Nos. of Ø 2.5” × 30” Long Filter Cartridge
05 Nos. of Ø 2.5” × 40” Long Filter Cartridge
Bolt & Nut
03FCPL-PCB-109-80
FCPL-PCB-209-80
FCPL-PCB-309-80FCPL-PCB-409-80
3″ BSP (F)09 Nos. of Ø 2.5” × 10” Long Filter Cartridge
09 Nos. of Ø 2.5” × 20” Long Filter Cartridge
09 Nos. of Ø 2.5” × 30” Long Filter Cartridge
09 Nos. of Ø 2.5” × 40” Long Filter Cartridge
Bolt & Nut
