Industrial Filters Manufacturer

Filter Concept is
one of the leading manufacturer
and exporter of industrial filters

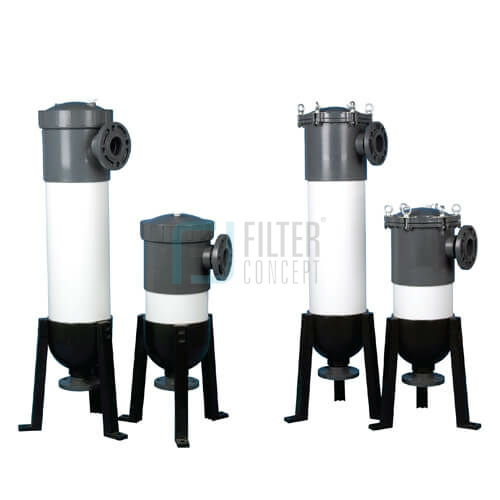

PVC Bag Filter Housing

PVC bag filter housings provide an economical alternative to stainless steel. Bag filter systems are designed for high flow rates and high sediment holding capacity. Its range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids.

Material of Construction

  • Housing – PVC
  • Bolt & Nut – SUS 316L

Inlet/Outlet

  • FCPL-PBU & FCPL-PBB – 2″ ANSI Flange

Closure

  • FCPL-PBU – Union
  • FCPL-PBB – Bolt and Nut

Sealing

  • Silicon O Ring

Pressure

  • FCPL-PBU – Max. 60 psi, continuous 45 psi
  • FCPL-PBB – Max.100 psi, continuous 75 psi
Processing Chemicals Paints
Petroleum Derivatives Inks
Coolants Resins
Cutting Oils Varnishes
Cleaning Fluids Lacquers
Vegetable Oils Pharmaceuticals
Edible Oils Sugar Cyrup
Polymers Plastsols
Sr. No. Model No. End Connection Suitable For Fitment
01 FCPL-PBU-716
FCPL-PBU-732
2” Flanged 01 No. of Ø 7” × 16” Long Filter Bag
01 No. of Ø 7” × 32” Long Filter Bag
Union
02 FCPL-PBB-716
FCPL-PBB-732
2” Flanged 01 No. of Ø 7” × 16” Long Filter Bag
01 No. of Ø 7” × 32” Long Filter Bag
Bolt & Nut
