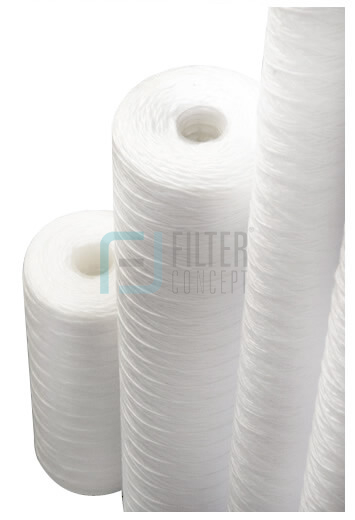

Wound Filter Cartridges

Wound cartridges are designed to meet the most demanding filtration duties. They offer an economic, compact, easily installed and maintained filtration system for removal of particulates from liquid. Wound cartridges are manufactured from a variety of carefully selected raw materials. These are processed into fibers of specific grades using the latest technology. After carding & spinning into roving they are wound into cartridges with carefully controlled micron rating. From raw materials to finished products we are in control of the quality and filtration characteristics. They are appreciated due to high dirt holding capacity and its rugged construction which allows facing different applications in liquid and gas filtration.

Operation

Unfiltered fluid passes through depth filter matrix, which enables the progressive retention of finer particles, providing high efficiency, high dirt retention & long filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.

  • Standard and customized sizes to fit most housings
  • Filtration rating from 1 to 100 Micron
  • High strength & pressure resistance
  • Manufactured in continuous length
  • Full range of sizes from 10” to 60” Length
  • Excellent flow with low pressure drop
  • High dirt holding capacity
  • Compatible with a wide range of fluids
  • NSF & FDA approved filter cartridges are available.

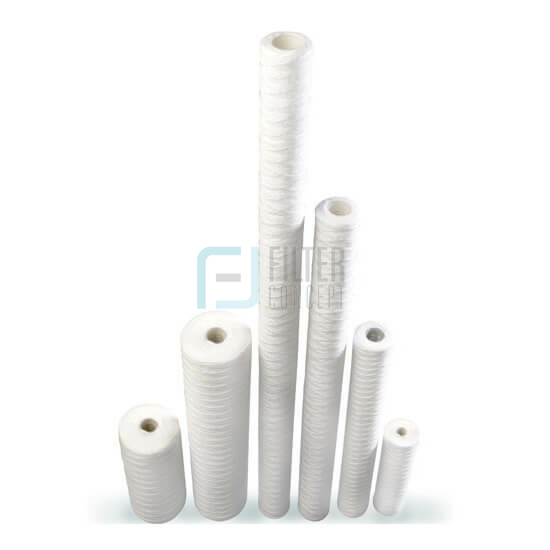

Sizes10”, 20”, 30”, 40”, 50”, 60” Long
 Micron Rating1, 5, 10, 25, 50, 75, 100
Outer Diameter64 mm(2.5”) 100 mm(4”), 110mm(4.5”) 6”, 8”
Inner Diameter28mm

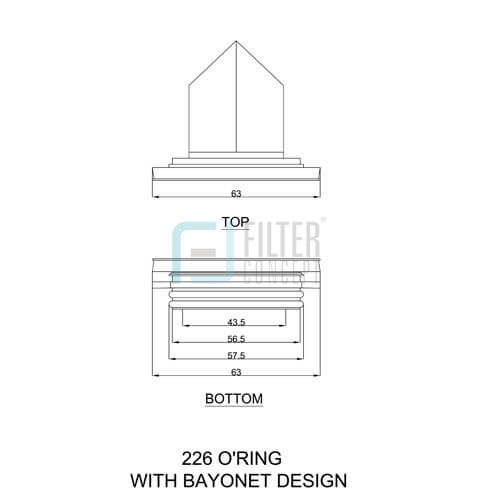

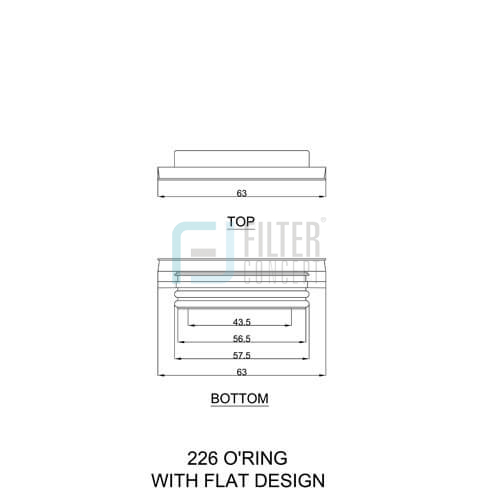

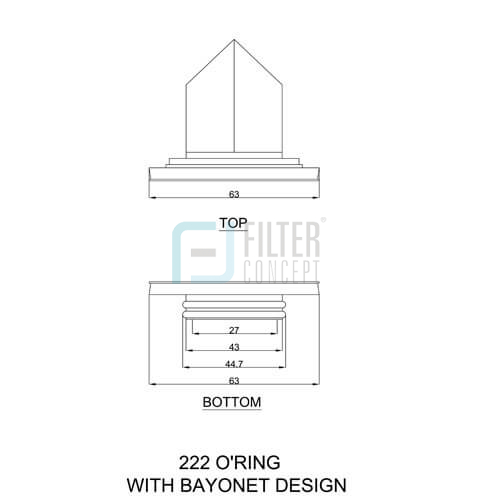

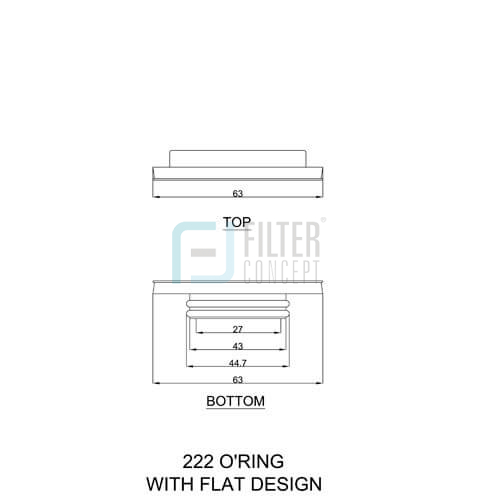

Double Open Type (DOE Type), 226 O’Ring design & 222 O’Ring Design.

  • Polypropylene with polypropylene core
  • Cotton with stainless steel core
  • Glass fiber with stainless steel core
Polypropylene wound filter cartridge
 Organic Acids
 Oils
 Concentrated Alkalis
 Water
 Organic solvents
 Electroplating solution
 Photographical process fluid



Cotton wound filter cartridge
 Vegetable Oils
 Dilute Acids
 Alkalis
 Organic solvents
 Portable liquids



Glass fiber wound filter cartridge
 High temperature filtration of Mineral Acids, Organic solvents, Oils
