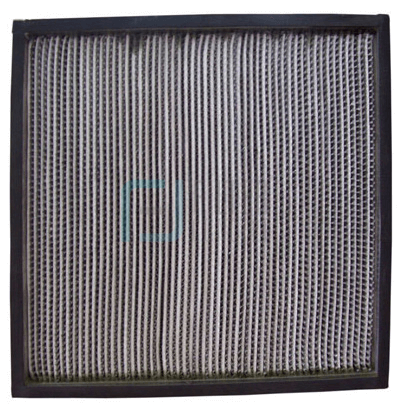

Hepa Filter

Hepa filters are designed to meet requirement of very fine filtration up to 0.3 micron at high efficiency of 99.99 %. We have added a new feature in conventional hepa filters by using spun bonded polyester media which is cleanable in nature. These are available with different coatings like PTFE coating, PTFE lamination & more for better dust releasing. Due to hydrophobic & oleo phobic treatment on media, it does not allow any moisture & oil contents to pass through.

  • Low pressure drop due to pleated configuration
  • Easy to install
  • No bypassing
  • High dirt holding capacity
  • High filtration efficiency
  • Good mechanical strength
  • Retrofit to any standard make
  • Configuration
  • Flange type & Box type

Sizes available

  • 610 mm x 610 mm x 50 mm / 100 mm / 150 mm / 300 mm
  • 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm
  • 545 mm x 545 mm x 50 mm / 100 mm / 150 mm / 300 mm
  • Customized sizes are available on request
  • Filtration Rating : 0.3 micron & more
  • Filtration efficiency : 90 – 99.9 %
  • Frame Material : SS 304 / GI (Galvanized Steel) / Aluminum
    Powder coated / CRC powder coated or Zinc coated
  • Filter media : Glass Fiber media / Spun bonded polyester
    media
